Pompes Japy Pompe Atex
JAPYTEX - JAPY ATEX PUMPS
Manual pumps | pneumatic pumps | electric pumps



ATEX manual pump
for use in potentially
EXplosive ATmospheres

WORLD
EXCLUSIVE

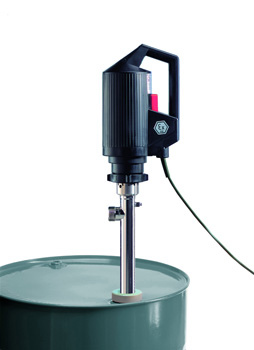

CASK EMPTIER ELECTRO-PUMP F-INOX 1000-700EX

pompe-electrique-atex


Maximum flow rate

Body

Maximum pressure

Pump

Intake


Compliance


max. 8,1 m3/h

Stainless steel

max. 0,7 bars

without seal

Ø 40 stainless steel tube, length 1m
(for other lengths: please consult us)

European directive ATEX 94/9/EC )
(ATEX Eex 2 II G 1/2c T3 for the pump
and ATEX II 2G Eex of IIC T5 for the motor





Pumps without seal are reliable and adapted to most aggressive and slightly viscous liquids. The dipper tube of the pump is in stainless steel; it is compartimentalized in sections in order to separate liquid under pressure (backup canal) from the low-pressure zone (reflow canal).

Advantages of pumps without seal:
Cleaning of the pump is greatly facilitated; the risk of run-off of the liquid when the pump is being moved to different casks is greatly reduced.
The internal structure of the dipper tube rigidifies it considerably, which ensures a mechanical stability in the unit of pumping.
No bearings in the reflow canal.
The engine torque is transmitted to the pump by a sturdy spherical denture clutch on an amply dimensioned stainless steel double rolling ball bearing.
